MMBT2907ALT1G PNP Bipolar Transistor 60V VCEO, 600mA Continuous Current 310mW Power Dissipation SOT-23 Package Low Saturation Voltage High Current Gain For General-Purpose Amplification & Switching

MMBT2907ALT1G PNP Bipolar Transistor 60V VCEO, 600mA Continuous Current 310mW Power Dissipation SOT-23 Package Low Saturation Voltage High Current Gain For General-Purpose Amplification & Switching

Features

1:Transistor Type: PNP Bipolar (BJT)

2:Voltage Rating: 60V V_CEO

3:Current Rating: 600mA Continuous I_C

4:Power Rating: 310mW Total Power Dissipation

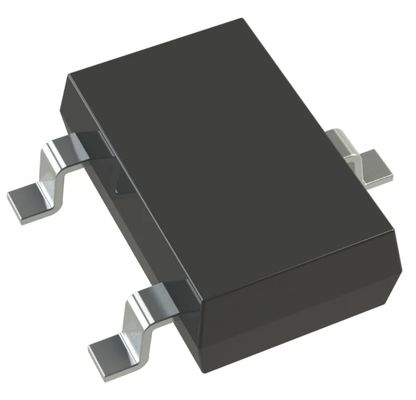

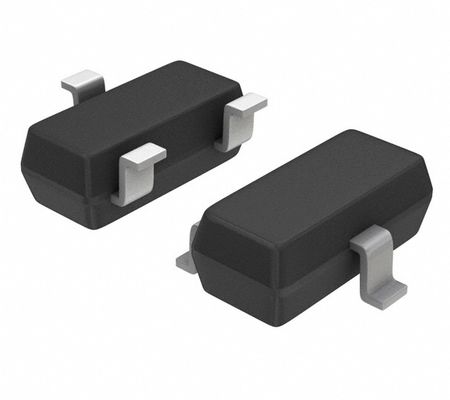

5:Package: Miniature SOT-23-3 (SC-59)

6:Saturation Voltage: Low V_CE(sat)

7:Current Gain: High h_FE

8:Qualification: RoHS Compliant

Applications

1:Signal Amplification: Used in driver stages, audio pre-amplifiers, and other general-purpose analog amplification circuits.

2:Low-Side Switching: Ideal for controlling relays, motors, LEDs, and other loads where the transistor is placed between the load and ground.

3:nterface Circuits: Serves as a level shifter or buffer between microcontrollers and higher-voltage/current peripherals.

4:Power Management: Incorporated in linear regulators, constant-current sources, and other power control circuitry.

5:Consumer & Industrial Electronics: Commonly found in power supplies, motor drives, and various control modules across industries.

Description

The MMBT2907ALT1G is a general-purpose PNP bipolar junction transistor housed in a compact, surface-mount SOT-23-3 package. It is designed for a wide range of analog amplification and low-side switching applications. This transistor features a collector-emitter voltage of 60V and a continuous collector current of 600mA, providing a robust solution for managing moderate power levels. Its high current gain and low saturation voltage ensure efficient operation and minimal power loss in both switching and linear circuits. As a lead-free and RoHS compliant component, it is suitable for modern electronic designs.

INFORMATION

Drawing

Our advantage :phones, PDA's, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
