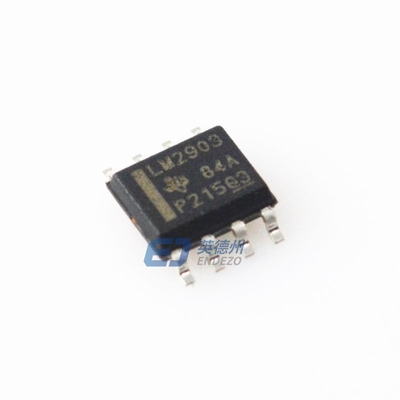

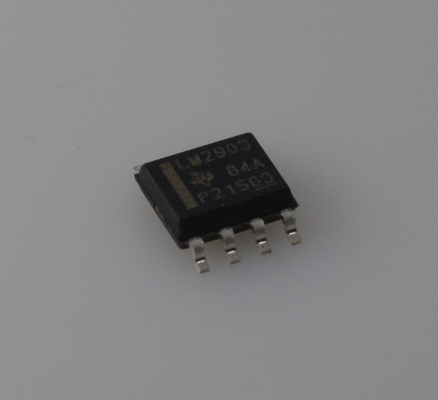

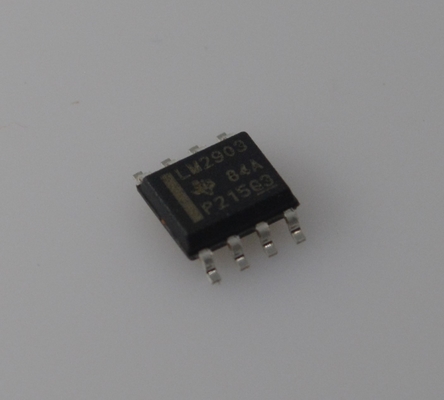

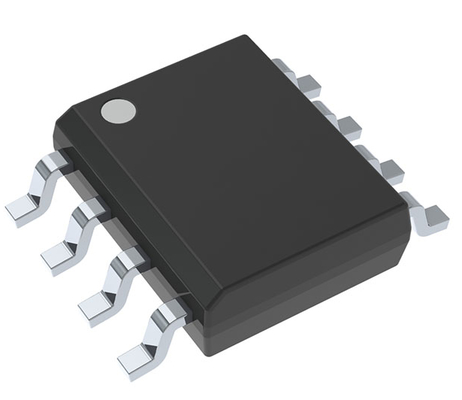

LM2903DR Dual Differential Comparator Wide 2V-36V Range Low 0.8mA Current Open-Collector Outputs Fast 1.3μs Response SOIC-8 Package - Ideal for Automotive/Industrial Control

LM2903DR Dual Differential Comparator Wide 2V-36V Range Low 0.8mA Current Open-Collector Outputs Fast 1.3μs Response SOIC-8 Package - Ideal for Automotive/Industrial Control

Features

• NEW LM393B and LM2903B

• Improved specifications of B-version

– Maximum rating: up to 38V

– ESD rating (HBM): 2kV

– Low input offset: 0.37mV

– Low input bias current: 3.5nA

– Low supply-current: 200µA per comparator

– Faster response time of 1µsec

– Extended temperature range for LM393B

– Available in tiny 2 x 2mm WSON package

• B-version is drop-in replacement for LM293, LM393 and LM2903, A and V versions

• Common-mode input voltage range includes ground

• Differential input voltage range equal to maximum rated supply voltage: ±38 V

• Low output saturation voltage

• Output compatible with TTL, MOS, and CMOS

Applications

• Vacuum robot

• Single phase UPS

• Server PSU

• Cordless power tool

• Wireless infrastructure

• Applicances

• Building automation

• Factory automation & control

• Motor drives

• Infotainment & cluster

Description

The LM393B and LM2903B devices are the next generation versions of the industry-standard LM393 and LM2903 comparator family. These next generation B-version comparators feature lower offset voltage, higher supply voltage capability, lower supply current, lower input bias current, lower propagation delay, and improved 2 kV ESD performance and input ruggedness through dedicated ESD clamps. The LM393B and LM2903B can drop-in replace the LM293, LM393 and LM2903, for both "A" and "V" grades.

All devices consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Quiescent current is independent of the supply voltage.
