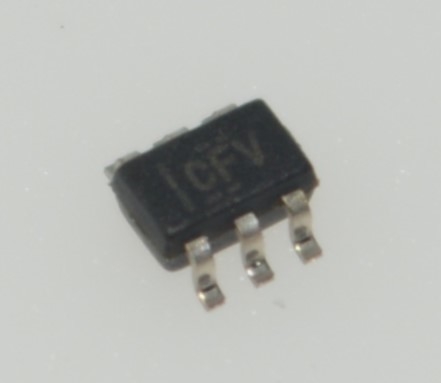

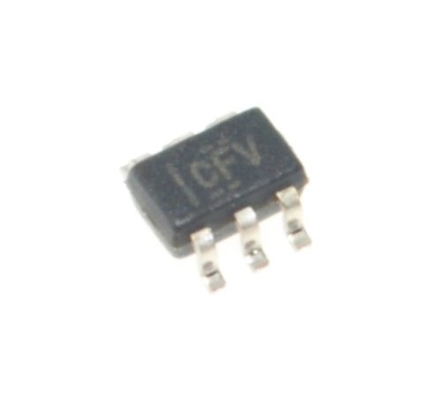

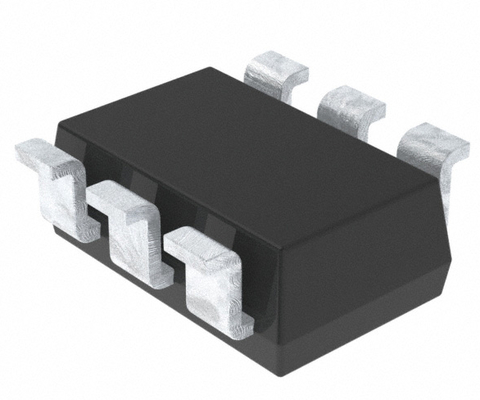

INA214AIDCKR 26V Precision Current Shunt Monitor 100µV Offset SC70-6 Package Wide 2.7-26V Range Low 85µA IQ Bidirectional Sensing - Ideal for Battery/Power Management

INA214AIDCKR 26V Precision Current Shunt Monitor 100µV Offset SC70-6 Package Wide 2.7-26V Range Low 85µA IQ Bidirectional Sensing - Ideal for Battery/Power Management

Features

• Updated format to match new TI layout and flow. Tables, figures and cross-references use a new numbering sequence throughout the document. Wide Common-Mode Range: –0.3 V to 26 V

• Offset Voltage: ±35 μV (Maximum, INA210) (Enables Shunt Drops of 10-mV Full-Scale)

• Accuracy:

–Gain Error (Maximum Over Temperature):

  • ±0.5% (Version C)

  • ±1% (Versions A and B)

–0.5-µV/°C Offset Drift (Maximum)

–10-ppm/°C Gain Drift (Maximum)

• Choice of Gains:

–INA210: 200 V/V

–INA211: 500 V/V

–INA212: 1000 V/V

–INA213: 50 V/V

–INA214: 100 V/V

–INA215: 75 V/V

• Quiescent Current: 100 μA (Maximum)

• SC70 and Thin UQFN Packages: All Models

Applications

• Notebook Computers

• Cell Phones

• Telecom Equipment

• Power Management

• Battery Chargers

Description

The INA21x are voltage-output, current-shunt monitors (also called current-sense amplifiers) that are commonly used for overcurrent protection, precision-current measurement for system optimization, or in closed-loop feedback circuits. This series of devices can sense drops across shunts at common-mode voltages from –0.3 V to 26 V, independent of the supply voltage. Six fixed gains are available: 50 V/V, 75 V/V, 100 V/V, 200 V/V, 500 V/V, or 1000 V/V. The low offset of the zero-drift architecture enables current sensing with maximum drops across the shunt as low as 10-mV full-scale.

These devices operate from a single 2.7-V to 26-V power supply, drawing a maximum of 100 µA of supply current. All versions are specified over the extended operating temperature range (–40°C to +125°C), and offered in SC70 and UQFN packages.

INFORMATION

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
