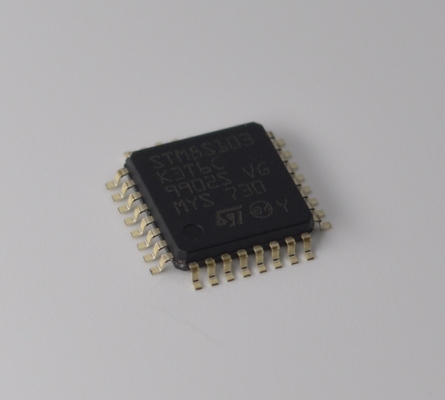

STM8S103K3T6C 8-Bit MCU with 8KB Flash 1KB RAM 16MHz Speed 10-bit ADC 4 Timers UART/SPI/I2C 2.95V-5.5V Range & 20-Pin TSSOP Package

STM8S103K3T6C 8-Bit MCU with 8KB Flash 1KB RAM 16MHz Speed 10-bit ADC 4 Timers UART/SPI/I2C 2.95V-5.5V Range & 20-Pin TSSOP Package

Features

Core

• 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline

• Extended instruction set

Memories

• Program memory: 8 Kbyte Flash; data retention 20 years at 55 °C after 10 kcycle

• Data memory: 640 byte true data EEPROM; endurance 300 kcycle

• RAM: 1 Kbyte

Clock, reset and supply management

• 2.95 to 5.5 V operating voltage

• Flexible clock control, 4 master clock sources

  – Low power crystal resonator oscillator

  – External clock input

  – Internal, user-trimmable 16 MHz RC

  – Internal low-power 128 kHz RC

• Clock security system with clock monitor

• Power management:

  – Low-power modes (wait, active-halt, halt)

  – Switch-off peripheral clocks individually

• Permanently active, low-consumption power on and power-down reset

Interrupt management

• Nested interrupt controller with 32 interrupts

• Up to 27 external interrupts on 6 vectors

Timers

• Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization

• 16-bit general purpose timer, with 3 CAPCOM channels (IC, OC or PWM)

• 8-bit basic timer with 8-bit prescaler

• Auto wake-up timer

• Window watchdog and independent watchdog timers

Communication interfaces

• UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode

• SPI interface up to 8 Mbit/s

• I2C interface up to 400 kbit/s

Analog to digital converter (ADC)

• 10-bit, ±1 LSB ADC with up to 5 multiplexed channels, scan mode and analog watchdog

I/Os

• Up to 28 I/Os on a 32-pin package including 21 high sink outputs

• Highly robust I/O design, immune against current injection

Unique ID

• 96-bit unique key for each device

Description

The STM8S103F2/x3 access line 8-bit microcontrollers offer 8 Kbyte Flash program memory, plus integrated true data EEPROM. The STM8S microcontroller family reference manual (RM0016) refers to devices in this family as low-density. They provide the following benefits: performance, robustness, and reduced system cost.

Device performance and robustness are ensured by advanced core and peripherals made in a state-of-the art technology, a 16 MHz clock frequency, robust I/Os, independent watchdogs with separate clock source, and a clock security system.

The system cost is reduced thanks to an integrated true data EEPROM for up to 300 k write/erase cycles and a high system integration level with internal clock oscillators, watchdog and brown-out reset.

Full documentation is offered as well as a wide choice of development tools.
