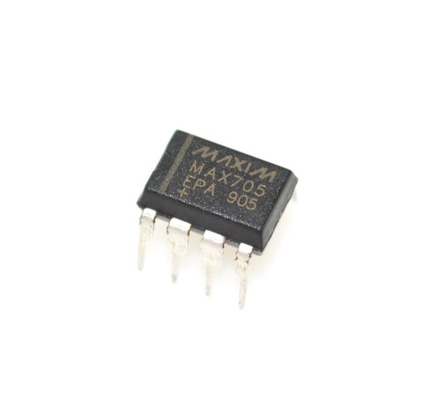

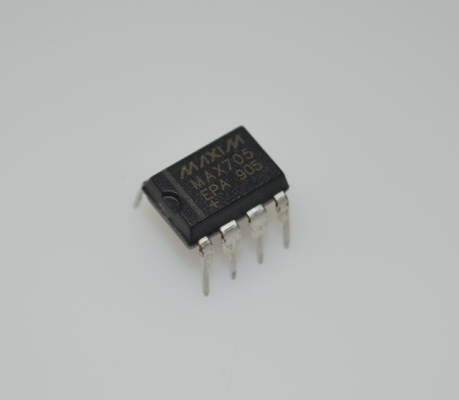

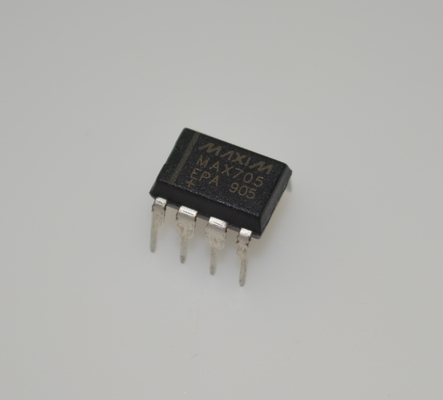

MAX705EPA Microprocessor Supervisor 4.65V Threshold 200ms Reset Pulse 5V Supply DIP-8 -40°C to +85°C

MAX705EPA Microprocessor Supervisor 4.65V Threshold 200ms Reset Pulse 5V Supply DIP-8 -40°C to +85°C

Benefits and Features

● Supervisory-Function Integration Significantly Improves System Reliability While Reducing Board Space

  • μMAX Package

  • Guaranteed RESET Valid at VCC = 1V

    - 200ms Reset Pulse Width

    - Debounced TTL/CMOS-Compatible Manual Reset Input

    - Active-High Reset Output (MAX707/MAX708/ MAX813L)

  • Precision-Supply Voltage Monitor

    - 4.65V (MAX705/MAX707/MAX813L)

    - 4.40V (MAX706/MAX708)

  • Voltage Monitor for Power

    -Fail or Low-Battery Warning

Applications

● Computers

● Controllers

● Intelligent Instruments

● Critical μP Power Monitoring

General Description

The MAX705–MAX708/MAX813L microprocessor (µP) supervisory circuits reduce the complexity and number of components required to monitor power-supply and battery functions in µP systems. These devices significantly improve system reliability and accuracy compared to separate ICs or discrete components.

The MAX705/MAX706/MAX813L provide four functions:

1) A reset output during power-up, power-down, and brownout conditions.

2) An independent watchdog output that goes low if the watchdog input has not been toggled within 1.6 seconds.

3) A 1.25V threshold detector for power-fail warning, low battery detection, or for monitoring a power supply other than +5V.

4) An active-low manual-reset input.

The MAX707/MAX708 are the same as the MAX705/ MAX706, except an active-high reset is substituted for the watchdog timer. The MAX813L is the same as the MAX705, except RESET is provided instead of RESET.

Two supply-voltage monitor levels are available: The MAX705/MAX707/MAX813L generate a reset pulse when the supply voltage drops below 4.65V, while the MAX706/ MAX708 generate a reset pulse below 4.40V. All four parts are available in 8-pin DIP, SO, and µMAX® packages.
